1964 Schematics

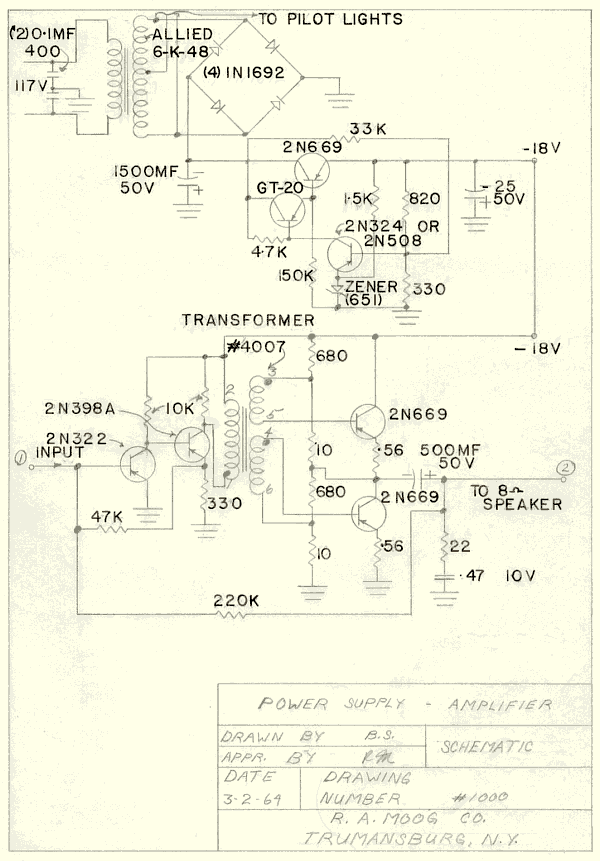

First Drawing from the Trumansburg Factory Vanguard II Theremin: Power Supply - Amplifier March 2, 1964 - Original Pencil Drawing

Next Drawing: Vanguard II Theremin Pitch Generator Board
