Progress Shots
|
|

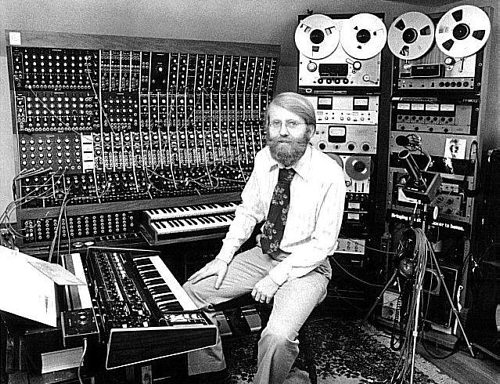

 1976 |
|
Module Complement
|
921 Oscillator 921A Oscillator Driver 921B Oscillator |
1 4 12 |
The 921B's were each modified with the addition of an LFO switch that allowed you to break the connection from the 921A while dropping the frequency a couple octaves and increasing the range of the front panel Range control. Also, the "CV In" jack was modified for exponential rather than linear response. |
|
904A Lowpass Filter 904B Hipass Filter 904C Filter Coupler |
3 3 3 |
The Low and High-pass filter panels were redesigned to fit one panel-width each. The Filter Coupler was incorporated on the High-pass panel, reducing the width of a complete bank from 6, down to 2 units. |
|
914 Fixed Filter Bank |
1 |
The 914 Filter Bank was modified with individual band outputs. |
|
903A White Sound 905 Reverb 902 VC Amplifier |
1 1 8 |
|
|
911 Envelope Generator 911A Dual Trigger Delay 912 Envelope Follower |
8 3 1 |
Each Envelope Generator had both V & S-Trig Inputs with LED indicator. Also, a Regen switch was added to each that routed the output to the V-Trig Input, allowing it to be used as an LFO, with the waveshape and frequency determined by the Attack and Decay times. |
|
984 4-Chnl Mixer CP3 Mixer Rev Attenuator |
1 5 1 |
|
|
950 Keyboard 950B Scale Programmer Switchboard |
2 1 1 |
The scale programmer was modified to allow macro as well as micro-tonal scale tuning, and the panels were redesigned to run the length of the cabinet (bottom row). The Switchboard to the left of the keyboards was just a big mixer, an input for each key of the lower keyboard, and one output. |
|
960 Sequencer 961 Interface 962 Sequential Switch |
2 1 4 |
|
|
Frequency Follower Frequency Shifter VC Phase Shifter Theremin Controller Oil Can Reverb Laryngeal Interface |
1 1 2 1 1 2 |
|
