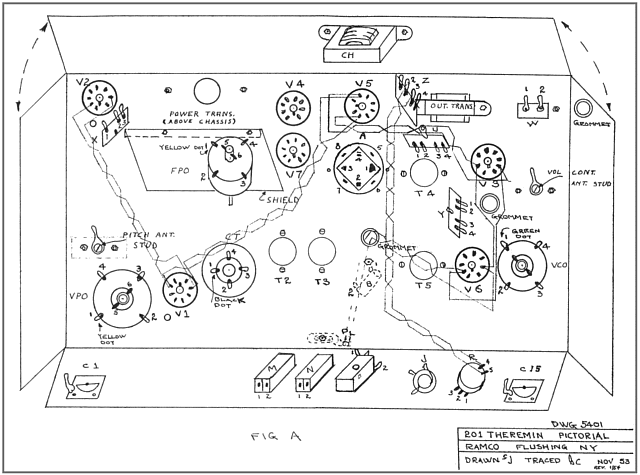

THEREMIN MODEL 201 DRAWING - November 1953
RAMCO, Flushing, New York

The "Drawn by" and "Traced by" were just bulls---. "GC" were my father's initials (George Conrad Moog) and "SJ" were my mother's initials (Shirley Jacobs Moog). My father was, in fact, a skilled draftsman (as you had to be if you were an engineer, back then), but my mother was a totally non-technical person. The backward-slanting printing is my father's, and the forward-slanting printing is mine. I don't know for sure which one of us did the actual drawing.

Bob Moog, November, 2003
