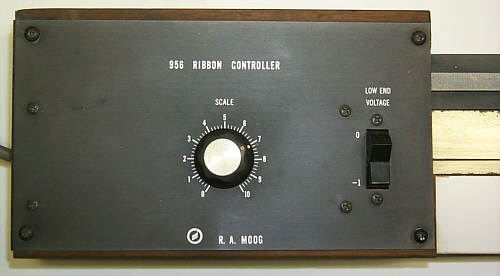

955 LINEAR CONTROLLER / 956 RIBBON CONTROLLER:

Permits the continuous and convenient variation of a control voltage by direct manual manipulation.
$75.00

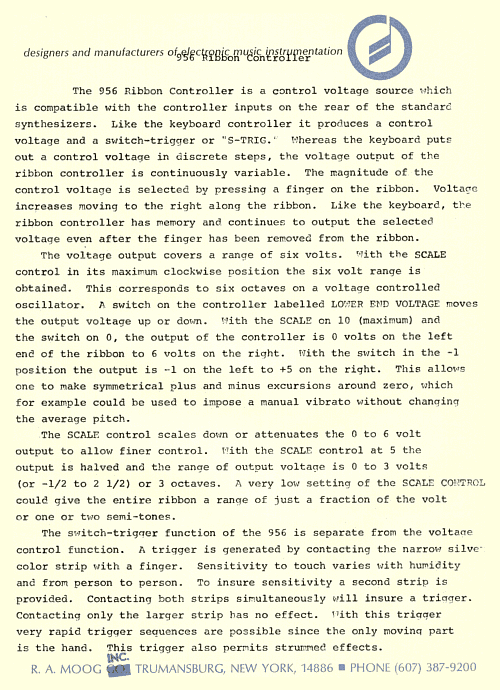

From "Ultra-Short Form Catalog of Electronic Music Composition Instruments", R.A. Moog Company, October, 1965.


In this controller, a taut metal band is strung over a resistance ribbon. The composer moves his finger along the band to change the point of contact between it and the ribbon. The control voltage output is precisely related and directly proportional to the position of the point of contact. Control voltage variations as large as six volts, discrete as well as continuous, can be produced by hand motion. The controller is 24" x 6" x 1" and has one control for determining the maximum voltage variation.

From "Electronic Music Composition - Performance Equipment, Short Form Catalog - 1967", R.A. Moog Company, 1967.

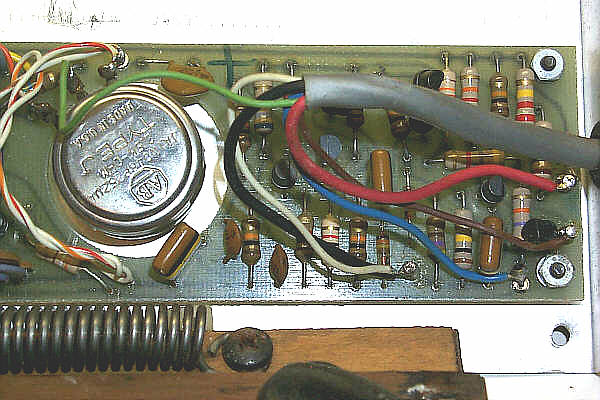

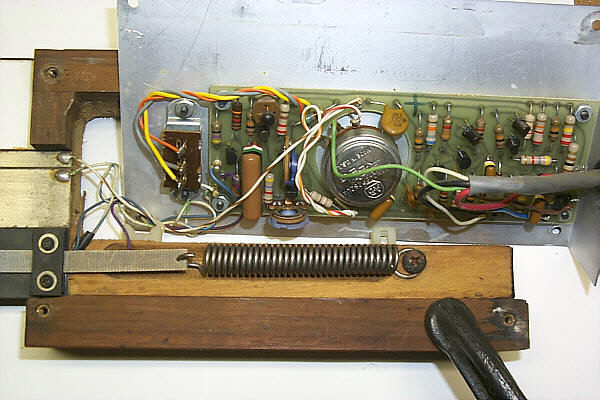

Assembly Detail Closeup Pictures
