from
MOOG
MODULAR
OWNER'S
MANUAL

by
Dan Wyman
Sound Arts
Los Angeles
for
moog music inc
1981

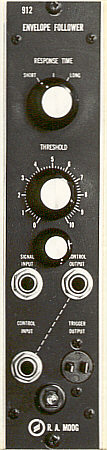

912 ENVELOPE CONTROL VOLTAGE FOLLOWER:

In conjunction with a voltage-controlled amplifier, this instrument produces an envelope which is the replica of the envelope of an applied "command" signal. Replication of the command envelope is accurate over a 60 db dynamic range.
$100.00

From "Ultra-Short Form Catalog of Electronic Music Composition Instruments", R.A. Moog Company, October, 1965.

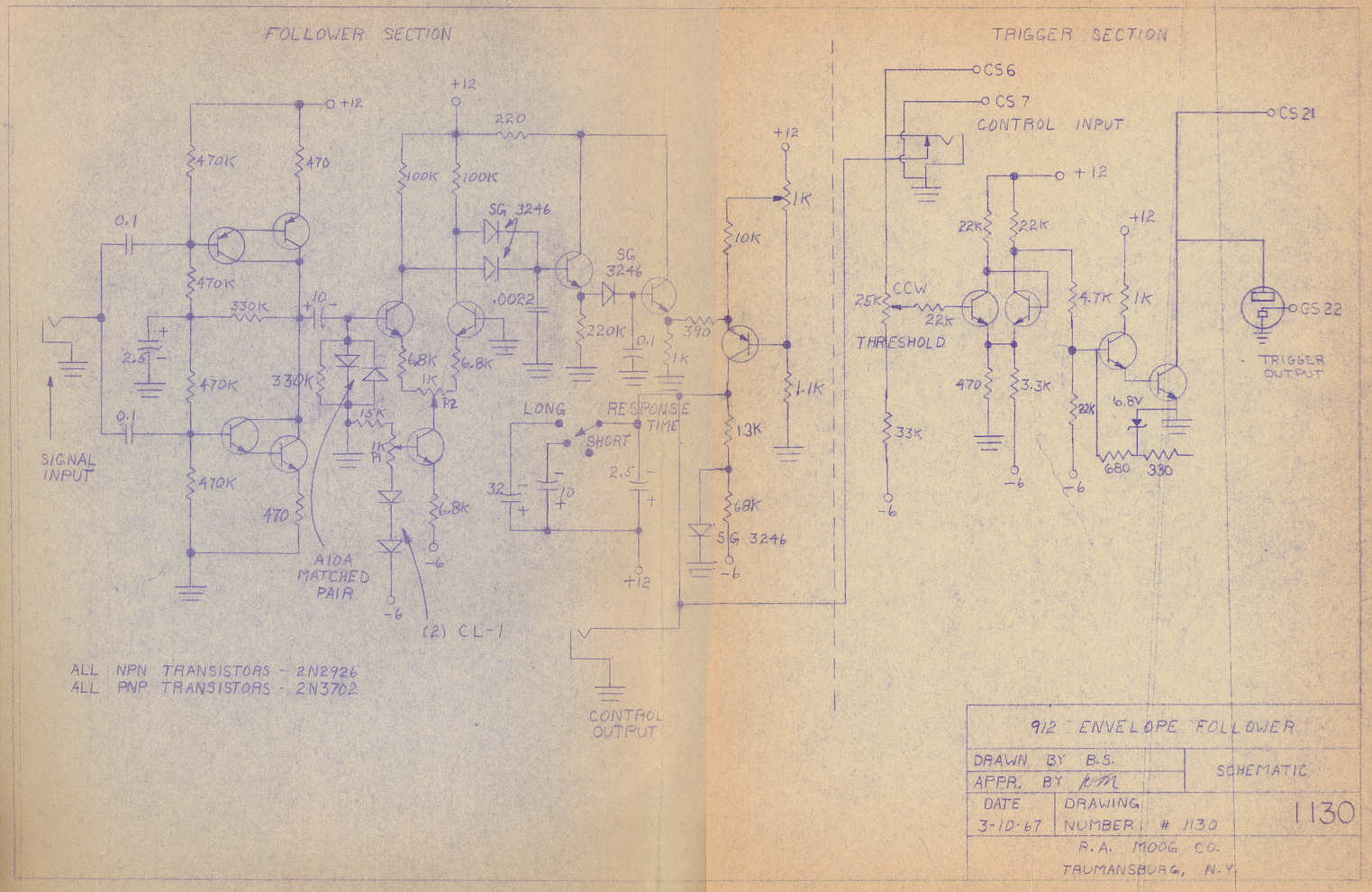

SCHEMATIC
